~ Wiring Diagram ~

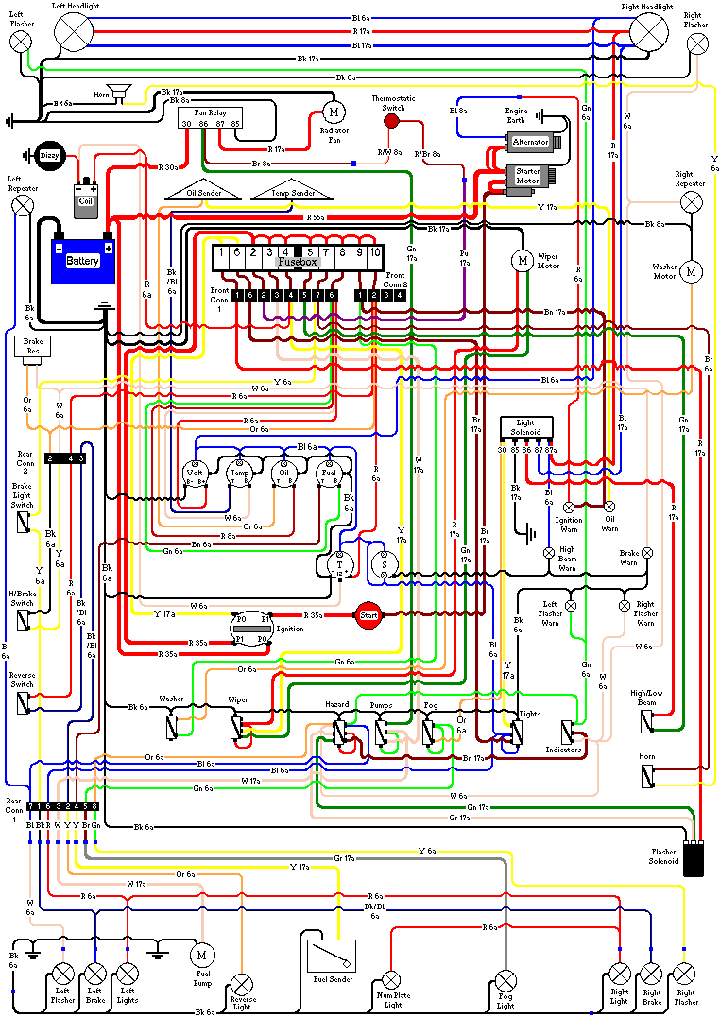

This is a home made Wiring Diagram based on an existing loom.
The colours are not standard but it all works and has not failed to date (made Jan '03).
I would still suggest you get your wiring checked out by a qualified Electritian regardless but it may help you
out with some smaller circuits.
