~ How to Wire an Electric Fan ~

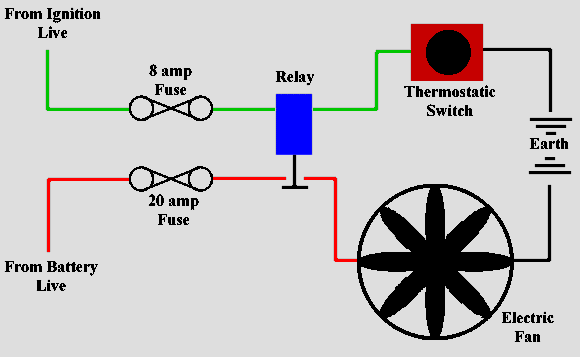

Electric Radiator fans draw quite a few amps when on full tilt. This simple diagram shows how to
wire a fan up via a thermostatic switch and a Relay.
This should only be used as a guide, you should really seek advise from a qualified Electrician

Wire a fan
